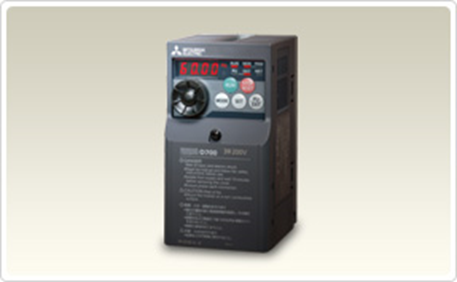

FR-D700

In addition to the improved reliability and easy maintenance, pursued easier use and better performance.





STANDARD SPECIFICATIONS



Applicable motor capacity (kW)*1



0.1



0.2



0.4



0.75



1.5



2.2



3.7



5.5



7.5



11



15

Output

Rated capacity (kVA)*2

0.3

0.6

1.0

1.7

2.8

4.0

6.6

9.5

12.7

17.9

23.1

Rated current (A)

0.8

1.4

2.5

4.2

7.0

10.0

16.5

23.8

31.8

45.0

58.0

Overload current rating*3

150% 60s, 200% 0.5s (inverse-time characteristics)

Voltage*4

Three-phase 200 to 240V

Regenerative braking torque*5

150%

100%

50%

20%

Power supply

Rated input AC voltage/frequency

Three-phase 200 to 240V 50Hz/60Hz

Permissible AC voltage

fluctuation

170 to 264V 50Hz/60Hz

Permissible frequency fluctuation

±5%

Power supply capacity (kVA)*6

0.4

0.7

1.2

2.1

4.0

5.5

9.0

12.0

17.0

20.0

27.0

Protective structure (JEM1030)

Enclosed type (IP20).

Cooling system

Self-cooling

Forced air cooling

Approximate mass (kg)

0.5

0.5

0.8

1.0

1.4

1.4

1.8

3.6

3.6

6.5

6.5











COMMON SPECIFICATIONS

Control specifications

Control method

Soft-PWM control/high carrier frequency PWM control (V/F control, General-purpose magnetic flux vector control, and Optimum excitation control are available)

Output frequency range

0.2 to 400Hz



Frequency setting resolution



Analog input

0.06Hz/60Hz (terminal2, 4: 0 to 10V/10bit)

0.12Hz/60Hz (terminal2, 4: 0 to 5V/9bit) 0.06Hz/60Hz (terminal4: 0 to 20mA/10bit)

Digital input

0.01Hz

Frequency accuracy

Analog input

Within ?1% of the max. output frequency (25°C ?10°C)

Digital input

Within 0.01% of the set output frequency

Voltage/frequency characteristics

Base frequency can be set from 0 to 400Hz. Constant-torque/variable torque pattern can be selected

Starting torque

150% or more (at 1Hz)...when General-purpose magnetic flux vector control and slip compensation is set

Torque boost

Manual torque boost

Acceleration/deceleration time setting

0.1 to 3600s (acceleration and deceleration can be set individually), Linear and S-pattern acceleration/deceleration modes are available.

DC injection brake

Operation frequency (0 to 120Hz), operation time (0 to 10s), and operation voltage (0 to 30%) can be changed

Stall prevention operation level

Operation current level (0 to 200%), and whether to use the function or not can be selected

Operation specifications



Frequency setting signal



Analog input

Two terminals

Terminal 2: 0 to 10V and 0 to 5V are available

Terminal 4: 0 to 10V, 0 to 5V, and 4 to 20mA are available

Digital input

The signal is entered from the operation panel or parameter unit. Frequency setting increment can be set.

Start signal

Forward and reverse rotation or start signal automatic self-holding input (3-wire input) can be selected.





Input signal (five terminals)

The following signals can be assigned to Pr. 178 to Pr.182 (input terminal function selection): multi-speed selection, remote setting, second function selection, terminal 4 input selection, JOG operation selection, PID control valid terminal, external thermal input, PU-External operation switchover, V/F switchover, output stop, start self-holding selection, forward rotation, reverse rotation command, inverter reset, PU-NET operation switchover, External-NET operation switchover, command source switchover, inverter operation enable signal, and PU operation external

interlock.



Operational functions

Maximum/minimum frequency setting, frequency jump operation, external thermal relay input selection, automatic restart after instantaneous power failure operation, forward/reverse rotation prevention, remote setting, second function, multi-speed operation, regeneration avoidance, slip compensation, operation mode selection, offline auto tuning function, PID control, computer link operation (RS-485), Optimum excitation control, power failure

stop, speed smoothing control, Modbus-RTU

Output signal

Open collector output (two terminals) Relay output (one terminal)

The following signals can be assigned to Pr.190, Pr.192 and Pr.197 (output terminal function selection): inverter operation, up-to-frequency, overload alarm, output frequency detection, regenerative brake prealarm, electronic thermal relay function prealarm, inverter operation ready, output current detection, zero current detection, PID lower limit, PID upper limit, PID forward/reverse rotation output, fan alarm??, heatsink overheat pre-alarm, deceleration at an instantaneous power failure, PID control activated, PID output interruption, safety monitor output, safety monitor output 2, during retry, life alarm, current average value monitor, remote output, alarm

output, fault output, fault output 3, and maintenance timer alarm.





Operating status



For meter

Pulse train output

(MAX 2.4kHz: one terminal)

The following signals can be assigned to Pr.54 FM terminal function selection: output frequency, output current (steady), output voltage, frequency setting, converter output voltage, regenerative brake duty, electronic thermal relay function load factor, output current peak value, converter output voltage peak value, reference voltage output, motor load factor, PID set point, PID measured value, output power, PID deviation, motor thermal load factor, and inverter thermal load factor.

Pulse train output (1440 pulses/s/full scale)

Indication





Operation panel



Parameter unit (FR-PU07)



Operating status

The following operating status can be displayed: output frequency, output current (steady), output voltage, frequency setting, cumulative energization time, actual operation time, converter output voltage, regenerative brake duty, electronic thermal relay function load factor, output current peak value, converter output voltage peak value, motor load factor, PID set point, PID measured value, PID deviation, inverter I/O terminal monitor, output

power, cumulative power, motor thermal load factor, inverter thermal load factor, and PTC thermistor resistance.

Fault record

Fault definition is displayed when a fault occurs. Past 8 fault records (output voltage/current/frequency/cumulative energization time right before the fault occurs) are stored.

Interactive guidance

Function (help) for operation guide ??







Protective/warning function



Protective function

Overcurrent during acceleration, overcurrent during constant speed, overcurrent during deceleration, overvoltage during acceleration, overvoltage during constant speed, overvoltage during deceleration, inverter protection thermal operation, motor protection thermal operation, heatsink overheat, input phase loss ?? ??, output side earth (ground) fault overcurrent at start??, output phase loss, external thermal relay operation ??, PTC thermistor operation??, parameter error, PU disconnection, retry count excess ??, CPU fault, brake transistor alarm, inrush resistance

overheat, analog input error, stall prevention operation, output current detection value exceeded ??, safety circuit fault

Warning function

Fan alarm??, overcurrent stall prevention, overvoltage stall prevention, PU stop, parameter write error, regenerative brake prealarm ??, electronic thermal relay function prealarm, maintenance output ??, undervoltage, operation panel lock, password locked, inverter reset, safety stop

Environment

Surrounding air temperature

-10°C to +50°C maximum (non-freezing) ??

Ambient humidity

90%RH or less (non-condensing)

Storage temperature??

-20°C to +65°C

Atmosphere

Indoors (without corrosive gas, flammable gas, oil mist, dust and dirt etc.)

Altitude/vibration

Maximum 1000m above sea level, 5.9m/s 2 or less at 10 to 55Hz (directions of X, Y, Z axes)

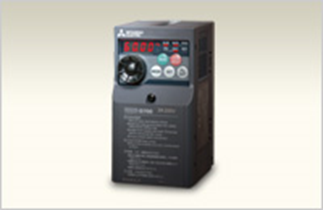

FR-D series
