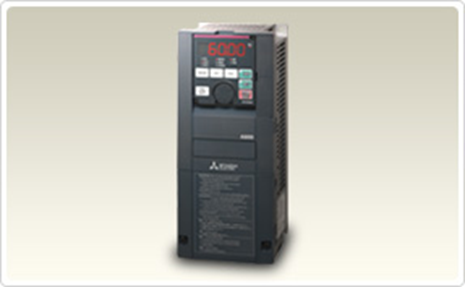

High performance and high quality new inverter of the highest level.With the enhanced drive performance and usability, the inverter is compliant with applicable safety standards.
More information
High-functionality, high-performance inverter
-
Realize even higher responsiveness during real sensor-less vector control or vector control, and achieve faster operating frequencies. ·
-
The latest automatic tuning function supports various induction motors and also sensor-less PM motors. ·
-
The standard model is compatible with EU Safety Standards STO (PLd, SIL2). Add options to support higher level safety standards. ·
-
Control and monitor inverters via CC-Link/CC-Link IE Field Network (option interface). ·
|
Inverter capacity
|
200V class: 0.4kW to 90kW, 400V class: 0.4kW to 500kW
|
|
Control method
|
High-carrier frequency PWM control (Select from V/F, advanced magnetic flux vector, real sensorless vector or PM sensorless vector control), vector control (when using options)
|
|
Output frequency range
|
0.2 to 590Hz (upper limit is 400Hz when using advanced magnetic flux vector control, real sensorless vector control, vector control or PM sensorless vector control)
|
|
Regenerative braking torque
(Maximum allowable duty)
|
200V class: 0.4K to 1.5K (150% at 3%ED) 2.2K/3.7K (100% at 3%ED) 5.5K/7.5K (100% at 2%ED) 11K to 55K (20% continuous) 75K or more (10% continuous), 400V class: 0.4K to 7.5K (100% at 2%ED) 11K to 55K (20% continuous) 75K or more (10% continuous)
|
|
Starting torque
|
200% 0.3Hz (3.7K or less), 150% 0.3Hz (5.5K or more) (when using real sensorless vector, vector control)
|
FOR 200 V
|
Inverter model FR-A820-£
|
SLD (Super light duty)
|
LD (Light duty)
|
ND (Normal duty initial value)
|
HD (Heavy duty)
|
|
Motor capacity (kW)*1
|
Rated current (A)
|
Motor capacity (kW)*1
|
Rated current (A)
|
Motor capacity (kW)*1
|
Rated current (A)
|
Motor capacity (kW)*1
|
Rated current (A)
|
|
0.4K
|
46
|
0.75
|
4.6
|
0.75
|
4.2
|
0.4
|
3
|
0.2
|
1.5
|
|
0.75K
|
77
|
1.5
|
7.7
|
1.5
|
7
|
0.75
|
5
|
0.4
|
3
|
|
1.5K
|
105
|
2.2
|
10.5
|
2.2
|
9.6
|
1.5
|
8
|
0.75
|
5
|
|
2.2K
|
167
|
3.7
|
16.7
|
3.7
|
15.2
|
2.2
|
11
|
1.5
|
8
|
|
3.7K
|
250
|
5.5
|
25
|
5.5
|
23
|
3.7
|
17.5
|
2.2
|
11
|
|
5.5K
|
340
|
7.5
|
34
|
7.5
|
31
|
5.5
|
24
|
3.7
|
17.5
|
|
7.5K
|
490
|
11
|
49
|
11
|
45
|
7.5
|
33
|
5.5
|
24
|
|
11K
|
630
|
15
|
63
|
15
|
58
|
11
|
46
|
7.5
|
33
|
|
15K
|
770
|
18.5
|
77
|
18.5
|
70.5
|
15
|
61
|
11
|
46
|
|
18.5K
|
930
|
22
|
93
|
22
|
85
|
18.5
|
76
|
15
|
61
|
|
22K
|
1250
|
30
|
125
|
30
|
114
|
22
|
90
|
18.5
|
76
|
|
30K
|
1540
|
37
|
154
|
37
|
140
|
30
|
115
|
22
|
90
|
|
37K
|
1870
|
45
|
187
|
45
|
170
|
37
|
145
|
30
|
115
|
|
45K
|
2330
|
55
|
233
|
55
|
212
|
45
|
175
|
37
|
145
|
|
55K
|
3160
|
75
|
316
|
75
|
288
|
55
|
215
|
45
|
175
|
|
75K
|
3800
|
90/110
|
380
|
90
|
346
|
75
|
288
|
55
|
215
|
|
90K
|
4750
|
132
|
475
|
110
|
432
|
90
|
346
|
75
|
288
|
For 400V-
|
Inverter model FR-A84£-£
|
SLD (Super light duty)
|
LD (Light duty)
|
ND (Normal duty initial value)
|
HD (Heavy duty)
|
|
Motor capacity (kW)*1
|
Rated current (A)
|
Motor capacity (kW)*1
|
Rated current (A)
|
Motor capacity (kW)*1
|
Rated current (A)
|
Motor capacity (kW)*1
|
Rated current (A)
|
|
0.4K
|
23
|
0.75
|
2.3
|
0.75
|
2.1
|
0.4
|
1.5
|
0.2
|
0.8
|
|
0.75K
|
38
|
1.5
|
3.8
|
1.5
|
3.5
|
0.75
|
2.5
|
0.4
|
1.5
|
|
1.5K
|
52
|
2.2
|
5.2
|
2.2
|
4.8
|
1.5
|
4
|
0.75
|
2.5
|
|
2.2K
|
83
|
3.7
|
8.3
|
3.7
|
7.6
|
2.2
|
6
|
1.5
|
4
|
|
3.7K
|
126
|
5.5
|
12.6
|
5.5
|
11.5
|
3.7
|
9
|
2.2
|
6
|
|
5.5K
|
170
|
7.5
|
17
|
7.5
|
16
|
5.5
|
12
|
3.7
|
9
|
|
7.5K
|
250
|
11
|
25
|
11
|
23
|
7.5
|
17
|
5.5
|
12
|
|
11K
|
310
|
15
|
31
|
15
|
29
|
11
|
23
|
7.5
|
17
|
|
15K
|
380
|
18.5
|
38
|
18.5
|
35
|
15
|
31
|
11
|
23
|
|
18.5K
|
470
|
22
|
47
|
22
|
43
|
18.5
|
38
|
15
|
31
|
|
22K
|
620
|
30
|
62
|
30
|
57
|
22
|
44
|
18.5
|
38
|
|
30K
|
770
|
37
|
77
|
37
|
70
|
30
|
57
|
22
|
44
|
|
37K
|
930
|
45
|
93
|
45
|
85
|
37
|
71
|
30
|
57
|
|
45K
|
1160
|
55
|
116
|
55
|
106
|
45
|
86
|
37
|
71
|
|
55K
|
1800
|
75/90
|
180
|
75
|
144
|
55
|
110
|
45
|
86
|
|
75K
|
2160
|
110
|
216
|
90
|
180
|
75
|
144
|
55
|
110
|
|
90K
|
2600
|
132
|
260
|
110
|
216
|
90
|
180
|
75
|
144
|
|
110K
|
3250
|
160
|
325
|
132
|
260
|
110
|
216
|
90
|
180
|
|
132K
|
3610
|
185
|
361
|
160
|
325
|
132
|
260
|
110
|
216
|
|
160K
|
4320
|
220
|
432
|
185
|
361
|
160
|
325
|
132
|
260
|
|
185K
|
4810
|
250
|
481
|
220
|
432
|
185
|
361
|
160
|
325
|
|
220K
|
5470
|
280
|
547
|
250
|
481
|
220
|
432
|
185
|
361
|
|
250K
|
6100
|
315
|
610
|
280
|
547
|
250
|
481
|
220
|
432
|
|
280K
|
6830
|
355
|
683
|
315
|
610
|
280
|
547
|
250
|
481
|
|
315K
|
7700
|
400
|
770
|
355
|
683
|
315
|
610
|
280
|
547
|
|
355K
|
8660
|
450
|
866
|
400
|
770
|
355
|
683
|
315
|
610
|
|
400K
|
9620
|
500
|
962
|
450
|
866
|
400
|
770
|
355
|
683
|
|
450K
|
10940
|
560
|
1094
|
500
|
962
|
450
|
866
|
400
|
770
|
|
500K
|
12120
|
630
|
1212
|
560
|
1094
|
500
|
962
|
450
|
866
|
|
SLD
|
110% 60 s, 120% 3 s (inverse-time characteristics) at surrounding air temperature of 40°C
|
|
LD
|
120% 60 s, 150% 3 s (inverse-time characteristics) at surrounding air temperature of 50°C
|
|
ND
|
150% 60 s, 200% 3 s (inverse-time characteristics) at surrounding air temperature of 50°C
|
|
HD
|
200% 60 s, 250% 3 s (inverse-time characteristics) at surrounding air temperature of 50°C
|
