FR-CS series

Various Functions in a Small Body Compact and Smart Inverter.

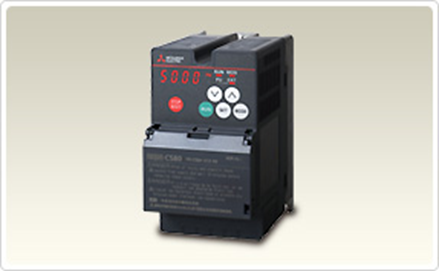

FR-CS80

  1. World's smallest class compact body
  2. Compact size achieved by the low heat generation design.
  3. Space saving by the side-by-side installation.
  4. Compact yet high performance
  5. General-purpose magnetic flux vector control.
  6. Easy maintenance
  7. Reduced wiring check time.

Standard Specifications





l Rating

u Three-phase 400 V class.



Model FR-CS84-[]

012

022

036

050

080

120

160

230

295

Applicable motor capacity (kW) *1

0.4

0.75

1.5

2.2

3.7

5.5

7.5

11

15

Output

Rated capacity (kVA) *2

0.9

1.7

2.7

3.8

6.1

9.1

12.2

17.5

22.5

Rated current (A)*3

1.2

(1.0)

2.2

(1.9)

3.6

(3.1)

5.0

(4.3)

8.0

(6.8)

12.0

(10.2)

16.0

(13.6)

23.0

(19.6)

29.5

(25.1)

Overload current rating *4

150% 60 s, 200% 0.5 s (inverse-time characteristics).

Rated voltage *5

Three-phase 380 to 480 V.

Power supply

Rated input AC voltage/frequency

Three-phase 380 to 480 V, 50/60 Hz.

Permissible AC voltage fluctuation

325 to 528 V, 50/60 Hz.

Permissible frequency fluctuation

±5%

Power supply capacity (kVA) *6

1.5

2.5

4.5

5.5

9.5

12.0

17.0

20.0

28.0

Protective structure (IEC 60529)

Open type (IP20).

Cooling system

Natural.

Forced air.

Approx. mass (kg)

0.6

0.6

0.9

0.9

1.4

1.9

1.9

3.5

3.5



 *1 The applicable motor capacity indicated is the maximum capacity applicable for use of the Mitsubishi Electric 4-pole standard motor.

*2 The rated output capacity at an output voltage of 440 V.

*3 When using the inverter in a surrounding air temperature of 50°C, the rated current is decreased to the value shown in the parentheses.

*4 The percentage of the overload current rating is the ratio of the overload current to the inverter's rated output current. For prolonged use, allow time for the inverter and motor to return to or fall below the temperatures under 100% load.

*5 The maximum output voltage does not exceed the power supply voltage. The maximum output voltage can be changed within the setting range. However,the maximum point of the voltage waveform at the inverter output side is the power supply voltage multiplied by about    2 .

*6  The power supply capacity is the value at the rated output current. The input power impedances (including those of the input reactor and cables) affect the

  • Common specifications



Control

Control method

Soft-PWM control, high carrier frequency PWM control (selectable among V/F control, General-purpose magnetic flux vector control, Optimum excitation control).

Output frequency range

0.2 to 400 Hz.



Frequency setting and resolution



Analog input

0.06/60 Hz at 0 to 10 V / 10 bits (terminals 2 and 4).

0.12/60 Hz at 0 to 5 V / 9 bits (terminals 2 and 4).

0.06/60 Hz at 0 to 20 mA / 10 bits (terminal 4).

Digital input

0.01 Hz.

Frequency accuracy

Analog input

Within ±1% of the maximum output frequency at 25°C (±10°C).

Digital input

0.01% or less of the set output frequency.

Voltage/frequency characteristics

Base frequency can be set from 0 to 400 Hz. Constant-torque or adjustable 3 points V/F can be selected.

Starting torque

150% or more at 1 Hz, with General-purpose magnetic flux vector control and slip compensation.

Torque boost

Manual torque boost.

Acceleration/deceleration time setting

0.1 to 3600 s (acceleration and deceleration can be set individually), linear or S-pattern acceleration/deceleration modes are available.

DC injection brake

Operation frequency (0 to 120 Hz), operation time (0 to 10 s), operation voltage (0 to 30%) variable.

Stall prevention operation level

Operation current: 0 to 200% variable, with selectable availability of the function.

Operation



Frequency setting signal

Analog input (2)

Terminal 2: 0 to 10 V / 0 to 5 V.

Terminal 4: 0 to 10 V / 0 to 5 V / 4 to 20 mA.

Digital input

Input from the operation panel or parameter unit, with selectable frequency setting increments

Start signal

Forward and reverse rotation or start signal automatic self-holding input (3-wire input) can be selected.



Input signal (5)

Using Pr.178 to Pr.182 (input terminal function selection), the signal can be selected from the following:

Multi-speed selection, Remote setting, Second acceleration/deceleration function selection, Terminal 4 input selection, JOG operation selection, PID control valid terminal, External thermal relay input, Output stop, Start self- holding selection, Forward rotation command, Reverse rotation command, Inverter reset, Traverse function selection.





Operational function

Maximum frequency, minimum frequency, frequency jump operation, external thermal relay input selection, automatic restart after instantaneous power failure operation, forward/reverse rotation prevention, remote setting, second acceleration/deceleration function, multi-speed operation, regeneration avoidance, slip compensation, operation mode selection, offline auto tuning, PID control, computer link operation (RS-485 communication), Optimum excitation control, power failure stop, MODBUS RTU, increased magnetic excitation deceleration.



Output signal relay output (1)

Using Pr.195 output terminal function selection, the signal can be selected from the following: Inverter running, Up to frequency, Overload warning, Output frequency detection, Electronic thermal O/L relay pre-alarm, Inverter operation ready, Output current detection, PID lower limit, PID upper limit, PID forward/reverse rotation output, Heatsink overheat pre-alarm, During deceleration at occurrence of power failure, During PID control activated, PID output interruption, During retry, Alarm output, Fault output, Fault output 3.

Indication





Operation panel



Parameter unit (FR-PU07)



Status monitoring

Selectable from the following: output frequency, output current (steady state), output voltage, frequency setting, cumulative energization time, actual operation time, converter output voltage, electronic thermal relay function load factor, motor load factor, PID set point, PID measured value, PID deviation, inverter I/O terminal monitor, output power, cumulative energy, motor thermal load factor, inverter thermal load factor.



Fault record

Fault record is displayed when a protective function is activated. Past 8 fault records are stored.

(output voltage, output current, frequency, and cumulative energization time right before the protective function is activated.)

Interactive guidance

Help function for operation guide*1.









Protective function







Fault

Overcurrent during acceleration, Overcurrent during constant speed, Overcurrent during deceleration, Overvoltage during acceleration, Overvoltage during constant speed, Overvoltage during deceleration, Inverter overload trip (electronic thermal relay function), Motor overload trip (electronic thermal relay function), Heatsink overheat, Input phase loss*3, Output side earth (ground) fault overcurrent at start, Output short circuit, Output phase loss, External thermal relay operation*2, Parameter error, PU disconnection*2, Retry count excess*2, CPU fault, Inrush current limit circuit fault, 4 mA input fault*2, Stall prevention stop, Output current detection value exceeded*2, Inverter output fault*5, Undervoltage.

Alarm, Warning, Error message

Overcurrent stall prevention, Overvoltage stall prevention, PU stop, Parameter write error, Electronic thermal O/L relay pre-alarm, Undervoltage, Inrush current limit resistor heating, Operation panel lock, Password locked, Inverter reset.

Environment

Surrounding air temperature

-10 to +40°C (non-freezing)*4,

40 to 50°C (non-freezing) at the rated current reduced by 15%

Surrounding air humidity

95% RH or less (non-condensing) for models with circuit board coating.

Storage temperature*6

-20 to +65°C

Ambience

Indoors (free from corrosive gas, flammable gas, oil mist, dust or dirt).

Altitude/vibration

2500 m or less (For the installation at an altitude above 1000 m, consider a 3% reduction in the rated current per 500 m increase in altitude.)/ 5.9 m/s2 or less at 10 to 55 Hz (directions of X, Y, Z axes)



  3





*1 Available for the option parameter unit (FR-PU07) only.

*2 This protective function is not available in the initial status.

*3 Available for the three-phase power input models.

4 When using the inverters at the surrounding air temperature of 40°C or less, the inverters can be installed closely attached (0 cm clearance).

*5 Available for the FR-CS84-160 or lower or the FR-CS82S.

*6 Applicable to conditions for a short time, for example, in transit.
